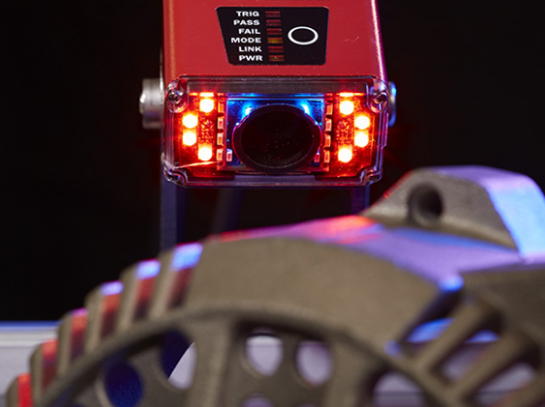

ID-40條碼掃描器是革命性的新產品，它具有最小的尺寸和IP65防護等級，是一款真正的工業以太網條碼掃描器，為成像儀市場樹立了新標桿。ID-40具有同類產品中最佳的一維碼/二維碼或直接零件標記解碼技術，是應對任何條件下條碼掃描挑戰的全面解決方案。憑借前所未有的易用性、超常的解碼性能、可選的液態鏡頭自動對焦以及超小的尺寸，ID-40成為業內超緊湊成像儀標桿產品。

邁思肯Microscan ID–40 工業條碼掃描器可解碼如下

標準型: 高對比度1D

增強型：高對比度1D/2D

X-Mode: 所有1D/2D, 包括低對比度、損壞或打印質量差的條碼; 直接零件標記 (DPM)

邁思肯Microscan ID–40 工業條碼掃描器特點

極其緊湊 (44.5 mm x 44.5 mm x 25.4 mm)

串口，高速USB 2.0 ，通過USB連接以太網

X-Mode 高級解碼算法

可選的液態鏡頭自動對焦

PROFINET I/O以太網供電（PoE）

集成了目標和讀取/通過 指示燈

可編程的紅色或白色LED 照明燈

邁思肯Microscan ID–40 工業條碼掃描器參數

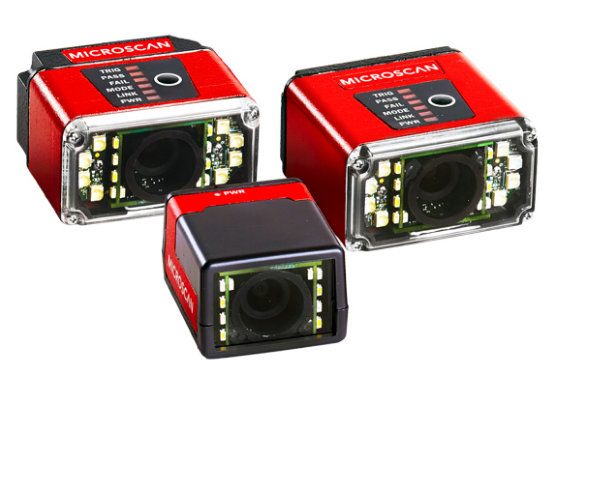

	ID-20	ID-30	ID-40
解碼	Standard (High-Contrast 1D) Plus (High-Contrast 1D/2D) X-Mode (Poor or Damaged)	Standard (High-Contrast 1D) Plus (High-Contrast 1D/2D) X-Mode (Poor or Damaged + DPM)	Standard (High-Contrast 1D) Plus (High-Contrast 1D/2D) X-Mode (Poor or Damaged + DPM)
速度	Standard (up to 10 FPS)	Standard (up to 10 FPS) or High-Speed (max. sensor FPS)	Standard (up to 10 FPS) or High-Speed (max. sensor FPS)
精度	Standard- or High-Density	Standard- or High-Density	Standard- or High-Density
傳感器 (CMOS)	WVGA 0.34MP (752x480) Global Shutter, up to 60 FPS SXGA 1.2MP (1280x960) Global Shutter, up to 42 FPS QSXGA 5.0MP (2592x1944) Rolling Shutter, up to 5 FPS	WVGA 0.34MP (752x480) Global Shutter, up to 60 FPS SXGA 1.2MP (1280x960) Global Shutter, up to 42 FPS QSXGA 5.0MP (2592x1944) Rolling Shutter, up to 5 FPS	WVGA 0.34MP (752x480) Global Shutter, up to 60 FPS SXGA 1.2MP (1280x960) Global Shutter, up to 42 FPS QSXGA 5.0MP (2592x1944) Rolling Shutter, up to 5 FPS
曝光	50 - 100,000 Default: 2,500 μs	50 - 100,000 Default: 2,500 μs	50 - 100,000 Default: 2,500 μs
顏色	QSXGA only	QSXGA only	QSXGA only
焦距	Fixed (50-300 mm)	Fixed (50-300 mm) Liquid Lens Autofocus	Fixed (50-300 mm) Liquid Lens Autofocus
通信方式	USB 2.0 High Speed, Ethernet over USB / HID	RS-232, USB 2.0 High Speed, Ethernet over USB / HID	RS-232, Ethernet TCP/IP, EtherNet/IP?, PROFINET?, Power over Ethernet (PoE)
連接器	Micro-B USB	High-Density 15-Pin D-Sub	M12 12-Pin (Power), M12 8-Pin (Ethernet)
線纜	N/A	0.91 m	N/A
照明	Inner LEDs: 4 White/4 Red Outer LEDs: N/A	Inner LEDs: 4 White/4 Red Outer LEDs: 8 High-Intensity White or Red (Optional)	Outer LEDs: 8 High-Intensity White or Red (Optional)
數字 I/O	N/A	3 in/3 out Trigger Input: 5-28V rated (0.16mA @ 5VDC); New Master: 5 to 28V rated (0.16mA @ 5VDC); Default: 3.3V rated (0mA @ 3.3V) Outputs (1, 2, 3): 5V TTL-compa tible, can sink 10mA and source 10mA	3 in/3 out, Optoisolated Trigger Input; New Master: Bi-directional, opto-isolated, 4.5-28V rated (10mA @ 28VDC) Outputs (1, 2, 3): Bi-directional, opto-isolated, 1-28V rated (ICE < 100mA at 24VDC, current limited by user)
電氣參數	5 VDC ± 5 %, 350 mA at 5 VDC (typ.)	5 VDC ± 5 %, 600 mA at 5 VDC (typ.)	4.75-30 VDC, 200 mV p-p max ripple, 150 mA at 24 VDC (typ.)
尺寸	24 mm x 34 mm x 39 mm	25 mm x 45 mm x 38 mm	25 mm x 45 mm x 45 mm
重量	26 g	46 g (包括線纜)	68 g
外殼	IP40,塑料	IP54, 鋁	IP65, 鋁
指示	Target Pattern, Good Read Green Flash	Target Pattern, Good Read Green Flash, Performance LEDs	Target Pattern, Good Read Green Flash, Performance LEDs

光源
Type: High output LEDs Output
Wavelength: 625 nm (Inner Red) nominal / 617 nm (Outer Red) nominal
Operating Life: 50,000 hours @ 25° C

環境
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -50° to 75° C (-58° to 167° F)
Humidity: 5% to 95% (non-condensing)

排放
EN 55022:2010 Class A Limits
